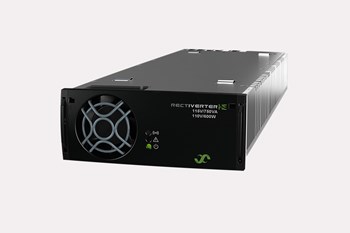

Rectiverter 115V/750VA 110V/600W

The Rectiverter is a 3 port device capable of charging the 110V battery and simultaneously provides power for the AC and DC loads. During mains outage the Rectiverter feeds AC loads using energy stored in the battery. Built on HE technology from the Flatpack2 HE rectifier family the Rectiverter 115V/750VA 110V/600W provides backed up power for 115 Vac and 110 Vdc loads with minimum losses and footprint.

Product Introduction

Product Introduction

Product Introduction

Features & Benefits

Unique 3-in-1 operation
Inverter
Rectifier
Power source transfer
Modular design
High efficiency
Global compliance
Patented technology
Hot pluggable
Voltage keying

Specifications

Input
Voltage AC (operating range)	95 - 140 VAC
Voltage DC (operating range)	90 - 145 VDC
AC Output
Voltage (adjustable)	100 - 127 VAC
DC Output
Max Power	600 W
Voltage (adjustable range)	97 - 145 VDC
Current (maximum)	6.3 ADC
Max voltage	145 VDC
Battery Distribution
LVBD	Yes
DC Load Distribution
LVLD	Yes
Other
Cooling	Single fan
Efficiency	93%
Operating temperature	-40 - 75 °C
Insulation	Yes
Dimensions
Dimensions WxHxD (mm)	109 x 41.5 x 327 mm
Weight	1,95 kg
Design Standards
Ingress Protection (IP)	20
