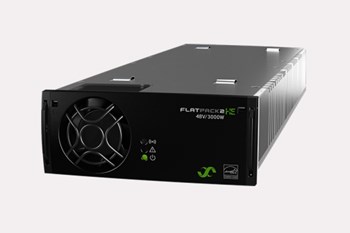

Flatpack2 48V/3000W HE

The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out. Increasing network speed demands flexible and expandable DC power solutions.

The Flatpack2 HE rectifiers are your key building blocks for future needs.

Product Introduction

Features & Benefits

The most reliable high efficieny rectifier in the industry!
With an efficiency up to 96.5%, the losses have been reduced by 50% compared to the current industry standard.In a global perspective, considering the high energy consumption in the telecom industry.

This technology breakthrough is not only reducing operational cost for the operators, but it can also have a significant environmental impact.



• Power dense, up to 33 W/inch3
• High efficiency
• Proven reliability
• Application flexibility 2kW-3MW
• Global compliance



Specifications

Input
Voltage AC (operating range)	85 - 305 VAC
DC Output
Max Power	3000 W
Voltage (adjustable range)	43,2 - 57,6 VDC
Current (maximum)	62,5 ADC
Max voltage	57,6 VDC
Other
Cooling	Single fan
Efficiency	96,2%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41,5 x 327 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,78 "
Weight	1,95 kg
