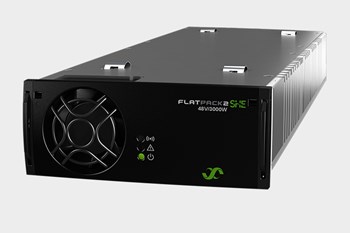

Flatpack2 48/2000 SHE

The Flatpack2 48/2000 Super HE is contributing to setting the new industry standard for efficiency in the DC power market. With an efficiency of 97.8% the Super HE is a premium rectifier particularly suitable for markets and applications where the energy is costly. In grid connected applications the payback time is down to 2 years compared to standard HE rectifiers, and in hybrid applications even faster.

Product Introduction

Features & Benefits
Super High Efficiency (SHE) rectifier for Telecom Applications
The Flatpack2 2000/48 Super HE is fully compatible with Flatpack2 and Flatpack2 HE systems and can replace any 2kW Flatpack2 module.

  • Super high efficiency - 97.8%
  • High power density - 33 W/inch3
  • Compatible with existing systems
  • Global compliance
  • Hot pluggable

Specifications
Input
Voltage AC (operating range) 85 - 264 VAC
DC Output
Max Power 2000 W
Voltage (adjustable range) 43,5 - 57,6 VDC
Current (maximum) 41,7 ADC
Max voltage 57,6 VD
Other
Cooling Single fan
Efficiency 97,8%
Operating temperature -25 - 75 °C
Dimensions
Dimensions WxHxD (mm) 109 x 41,5 x 327 mm
Dimensions WxHxD (inch) 4,29 x 1,63 x 12,78 "
Weight 2,05 kg
Design Standards
Ingress Protection (IP) 20
