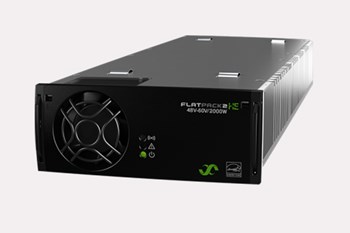

Flatpack2 48-60V/2000W HE

Reliable high efficiency rectifier for industrial applications.

Product Introduction

Features & Benefits

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages. The Flatpack2 48V-60V/2000W HE is a cost efficient rectifier for 48V and 60V lead acid battery systems as well as 48V NiCad.



• High efficiency – 96.2 %
• Proven reliability
• High power density
• Application flexibility - 2kw to multicabinet installations
• Modular design - MTTR and LT5mins
• AcceptsDC input (DC/DC converter)
• Global compliance (CE, UL, NEBS)
• Marineand offshore certification

Specifications

Input
Voltage AC (operating range)	85 - 300 VAC
Voltage DC (operating range)	80 - 300 VDC
DC Output
Max Power	2000 W
Voltage (adjustable range)	39,9 - 72 VDC
Current (maximum)	41,7 ADC
Max voltage	72 VDC
Other
Cooling	Single fan
Efficiency	96,2%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41,5 x 327 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,78 "
Weight	1,95 kg
Certifications
Marine	DNV 2.4 Valid for part no. 241115.705M
