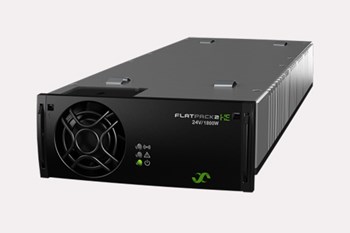

Flatpack2 24V/1800W HE

The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.

Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.

Product Introduction

Features & Benefits

Reliable high efficiency rectifier for industrial applications
The Flatpack2 modular concept has a lot of benefits compared to traditional solutions in the industry. It has high efficiency; less power consumption and heat dissipation. The overall Size and footprint of cabinet is 50% of Thyristor Controlled Size. Modular Hot Plug-in Construction allows redundancy, n+1, n+2 configurations.

It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.


• Digital controllers
• Heat management
• OR-ing protection on output unique connection



Specifications

Input
Voltage AC (operating range)	85 - 300 VAC
Voltage DC (operating range)	85 - 300 VDC
DC Output
Max Power	1800 W
Voltage (adjustable range)	21,7 - 28,8 VDC
Current (maximum)	75 ADC
Max voltage	28,8 VDC
Other
Cooling	Single fan
Efficiency	95%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41,5 x 327 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,78 "
Weight	1,95 kg
Design Standards
Ingress Protection (IP)	20
Certifications
Marine	DNV 2.4 Valid for part no. 241115.205M

Download

Fact sheet / 512 KB
