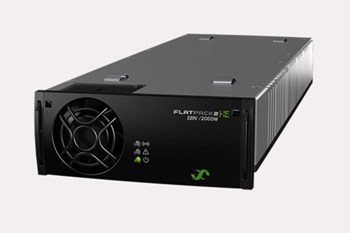

Flatpack2 220V/2000W HE

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages. Power systems up to the MW-range can be realized using the 10A model addressing small and larger modular data centers’ power needs.

Product Introduction

Features & Benefits

Reliable high efficiency rectifier for industrial applications
220 Vdc power systems provide an excellent alternative to traditional AC UPS providing significant efficiency and reliability improvements.

With 220 Vdc, standard components, cables and distribution can be used and most IT equipment designed for 208/230 Vac can be connected directly to the 220 Vdc bus.


• Proven reliability
• High power density
• High efficiency
• Application flexibility - 2kW to multicabinet installations
• Accepts DC input (DC/DC converter)
• Global compliance (CE, UL)
• Marine and offshore certifications
• Digital controllers



Specifications

Input
Voltage AC (operating range)	85 - 300 VAC
Voltage DC (operating range)	85 - 300 VDC
DC Output
Max Power	2000 W
Voltage (adjustable range)	178,5 - 297 VDC
Current (maximum)	9,16 ADC
Max voltage	297 VDC
Other
Cooling	Single fan
Efficiency	95%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41,5 x 327 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,78 "
Weight	1,95 kg
Certifications
Marine	DNV 2.4 Valid for part no. 241115.815M
