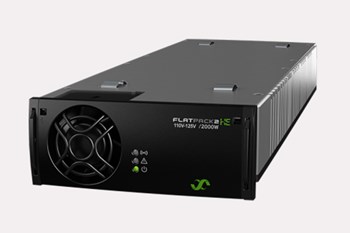

Flatpack2 110-125/2000 HE

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages.

Product Introduction

Features & Benefits

Reliable high efficiency rectifier for industrial applications


• Proven reliability
• High power density
• Application flexibility - 2kw to multicabinet installations
• Accepts DC input (DC/DC converter)
• Global compliance (CE, UL)
• Marineand offshore certifications
• Digital controllers

Specifications

Input
Voltage AC (operating range)	85 - 300 VAC
Voltage DC (operating range)	85 - 300 VDC
DC Output
Max Power	2000 W
Voltage (adjustable range)	89,2 - 171,6 VDC
Current (maximum)	16,7 ADC
Max voltage	171,6 VDC
Other
Cooling	Single fan
Efficiency	94%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41,5 x 327 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,78 "
Weight	1,95 kg
Certifications
Marine	DNV 2.4 Valid for part no. 241122.105M
