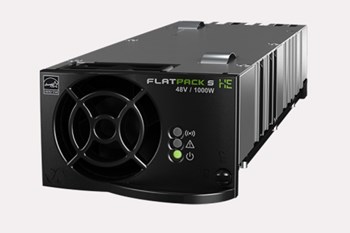

Flatpack S 48V/1000W HE

The Flatpack S rectifiers incorporate telecom specifications, high efficiency, OR-ing protection on output and high power in a small, 217 mm deep box.

Product Introduction

Features & Benefits

Compact HE rectifiers for small to medium telecom applications
Used in the 1U high, 2 or 3 rectifier positions power rack with Smartpack S controller and battery and load distributions, the Flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6 liters, and low heat dissipation.


• Small
• Short
• Power density - 26 W/inch3
• High efficiency
• OR-ing protection on output
• Hot pluggable
• Voltage and power keying

Specifications

Input
Voltage AC (operating range)	85 - 300 VAC
Voltage DC (operating range)	85 - 250 VDC
DC Output
Max Power	1000 W
Voltage (adjustable range)	43,5 - 57,6 VDC
Current (maximum)	20,9 ADC
Max voltage	57,6 VDC
Other
Cooling	Single fan
Efficiency	95,5%
Operating temperature	-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)	72 x 41,5 x 217 mm
Dimensions WxHxD (inch)	42,83 x 1,63 x 8,54 "
Weight	0,85 kg
Design Standards
Ingress Protection (IP)	20
Certifications
Marine	DNV 2.4 Valid for part no. 241122.105M
