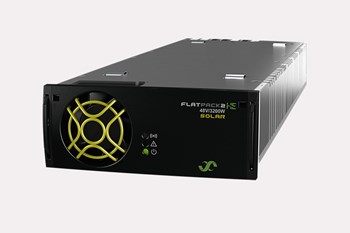

Flatpack2 48/3200 HE Solar

High efficiency solar charger for telecom applications. With the MPPT algorithm ensuring close to 100% panel utilization and an efficiency above 97%, the galvanic isolated solar charger sets new standards for renewable power in telecom.


Product Introduction

Features & Benefits

• High efficiency– 97 %
• MPPT – Maximum Power Point Tracking
• Ground fault detection of PV string
• Supports high input voltage- up to 430V = low losses/small cables
• Telecom specifications
• Fully integrated in Eltek control system
• Global compliance
• Voltage keying

Specifications

Input
Voltage AC (operating range)	85 - 430 VAC
DC Output
Max Power	3200 W
Voltage (adjustable range)	43,5 - 57,6 VDC
Current (maximum)	66,7 ADC
Max voltage	57,6 VDC
Other
Cooling	Single fan
Efficiency	97%
Operating temperature	-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)	109 x 41 x 324 mm
Dimensions WxHxD (inch)	4,29 x 1,63 x 12,76 “
Mounting Dimensions	19” / 1U / 324, Width (inch) / Height (U) / Depth (mm)
Weight	1,95 kg
Design Standards
Ingress Protection (IP)	20
