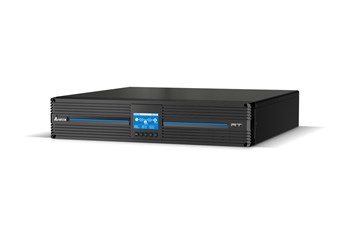

Product Introduction

Features & Benefits

Power More from Less

• Unity power factor (kVA=kW), provides maximum power for your facility
• Industry leading AC-AC efficiency up to 94.3% and ECO mode efficiency up to 99% offer significant energy cost savings
• Extends battery lifespan through reduced usage with wide 120-280V input range and a smart 3-stage battery charge mechanism

Superior Flexibility

• Two programmable outlets group for power-cycling and optimize battery runtime for most critical applications
• Easily scales for longer backup time with optional external battery pack
• REPO/ ROO enables remote shutdown and restart during accidents to ensure safety
• Integrated dry-contacts with user-selectable definition
• Convertible rack and tower configuration with rotatable LCD screen

Easy Management

• CE and UL certified, streamlines global models and service management for multinational operations
• LCD display and intuitive interface offer effortless monitoring and configuration
• Intelligent management software connectivity via RS-232, USB, or mini slot port for remote monitoring and setting

Applications

Specifications

Model RT Pro-1K / RT Pro-2K / RT Pro-3K

---

Topology Online double-conversion

---

Power Rating

• RT Pro-1K: 1 kVA / 1 kW
• RT Pro: 2 kVA / 2 kW
• RT Pro: 3 kVA / 3 kW

---

Input Nominal Voltage: 200/ 208/ 220/ 230/ 240 Vac, 1P2W+PE Voltage Range: 175-280 Vac (100% load), 120-175 Vac (with derating to 70-100% load)⁽¹⁾ Frequency: 40-70 Hz Power Factor: 0.99 (100% load) Connection

• RT Pro-1K: IEC C14
• RT Pro-2K/3K: IEC C20

---

Output Nominal Voltage: 200⁽²⁾/ 208⁽²⁾/ 220/ 230/ 240 Vac, 1P2W+PE Voltage Regulation: ±3% (linear load) Frequency: 50/60 ± 0.05 Hz Total Harmonic Distortion (THDv): ≤ 2% (linear load) Power Factor: 1 Connection

• RT Pro-1K: IEC C13 ×2, Programmable IEC C13 ×2 ×2 groups
• RT Pro-2K/3K: IEC C13 x2, IEC C19 x1, Programmable IEC C13 x2 x2 groups

Overload Capability: < 105% continuous, 105-125%: 1 min ± 5 secs, 126-150%: 15 ± 3 secs, 151-155%: 0.1 secs Current Crest Ratio: 3:1

---

Efficiency Online Mode:

• RT Pro-1K: 93.5%
• RT Pro-2K: 94%
• RT Pro-3K: 94.3%

ECO Mode: 99%

---

Battery Battery Type: VRLA Nominal Voltage

• RT Pro-1K: 24 Vdc
• RT Pro-2K: 48 Vdc
• RT Pro-3K: 72 Vdc

Quantity

• RT Pro-1K: 2 pcs
• RT Pro-2K: 4 pcs
• RT Pro-3K: 6 pcs

Charge Current: Up to 2.5 A

---

Communication Interface Display: LCD display with LED indicators Port: USB, RS-232, REPO, Mini Slot, Input dry contact x1, Output dry contact x3 REPO (Emergency Power Off): Standard

---

Physical Dimensions (W x D x H)

• RT Pro-1K: 440 x 335 x 88 mm
• RT Pro-2K: 440 x 430 x 88 mm
• RT Pro-3K: 440 x 565 x 88 mm

Net Weight

• RT Pro-1K: 11.7 kg
• RT Pro-2K: 21 kg
• RT Pro-3K: 28 kg

Packing Dimensions (W x D x H)

• RT Pro-1K: 484 x 579 x 220 mm
• RT Pro-2K: 594 x 508 x 220 mm
• RT Pro-3K: 605 x 1005 x 220 mm

Packing Weight

• RT Pro-1K: 18 kg
• RT Pro-2K: 28.8 kg
• RT Pro-3K: 38 kg

---

Environment Operating Temperature: 0 to 55°C⁽³⁾ Humidity: 5-95% (non-condensing) Audible Noise⁽⁴⁾: < 40 dBA Altitude: 0-3,000 m (derating 1%/100 m from 1,000-3,000 m) Ingress Protection: IP20

---

Conformance Safety: CE, UL, cUL, RCM, UKCA EMC: IEC 62040-2 Sustainability: RoHS, REACH

---

(1) 200/ 208 Vac: 160-280 Vac (100% load); 120-160 Vac (with derating to 70-100% load) (2) Derating to 90% load (3) 40 to 50°C de-rating to 90% load; 50 to 55°C de-rating to 75% load (4) ECO mode at front side 1 meter All specifications are subject to change without prior notice.

Runtime Table

1 kVA 2 kVA 3 kVA
